NI8-M18-AP6X/S120 | TURCK - Your Global Automation Partner
Inductive Sensor
NI8-M18-AP6X/S120
Order ID no. 4611230
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Cable length (m)
2
Design
Threaded barrel
Electrical connection
Cable
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
120
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
8
Construction size
M18 x 1
Base unit
PCE
EAN/UPC code
4047101170443
Gross weight
148
Height
20
Length
190
Net weight
148
Dimension unit
MMT
Weight unit
GRM
Volume
494
Volume unit
CMQ
Width
130

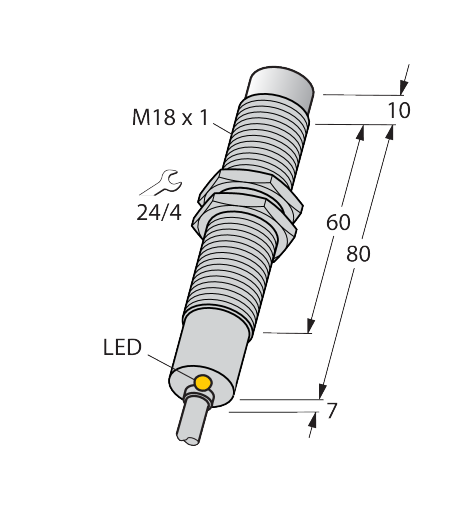

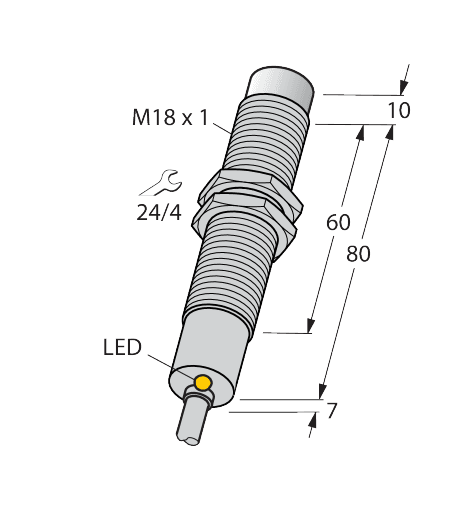

Dimensions
18 mm x 97 mm
Housing surface
Chrome-plated
Quality active face
PA12-GF30
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Cable
Mounting conditions
Non-flush
Output function
PNP
Rated switching distance (mm)
8
