NI3-EH6.5-AP6X | TURCK - Your Global Automation Partner
Inductive Sensor
NI3-EH6.5-AP6X
Order ID no. 4612400
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Cable length (m)
2
Cable color
Gray
Design
Smooth barrel
Electrical connection
Cable
Housing material
Stainless steel
Housing quality
1.4305 (AISI 303)
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
3
Construction size
Ø 6.5 mm
Base unit
PCE
EAN/UPC code
4047101155648
Gross weight
35
Height
10
Length
120
Net weight
35
Dimension unit
MMT
Weight unit
GRM
Volume
84
Volume unit
CMQ
Width
70

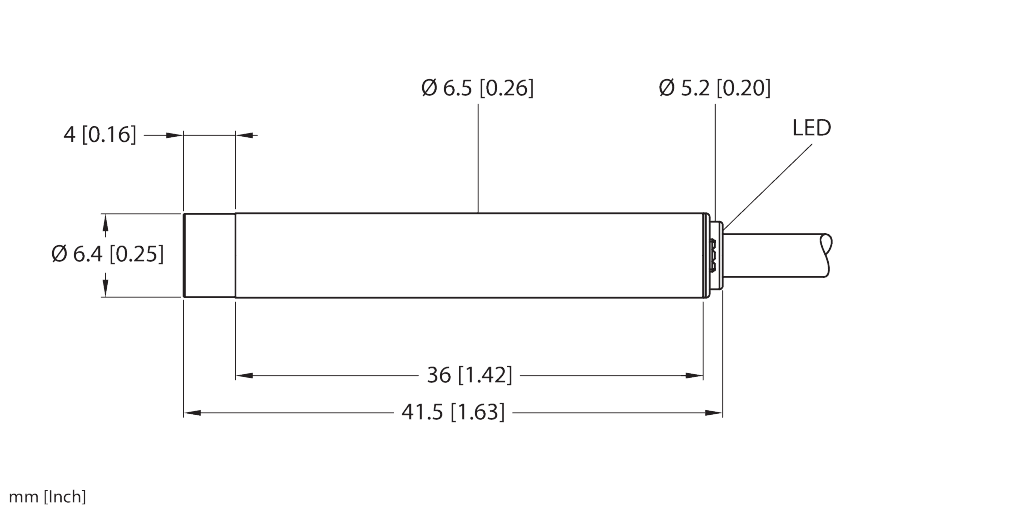

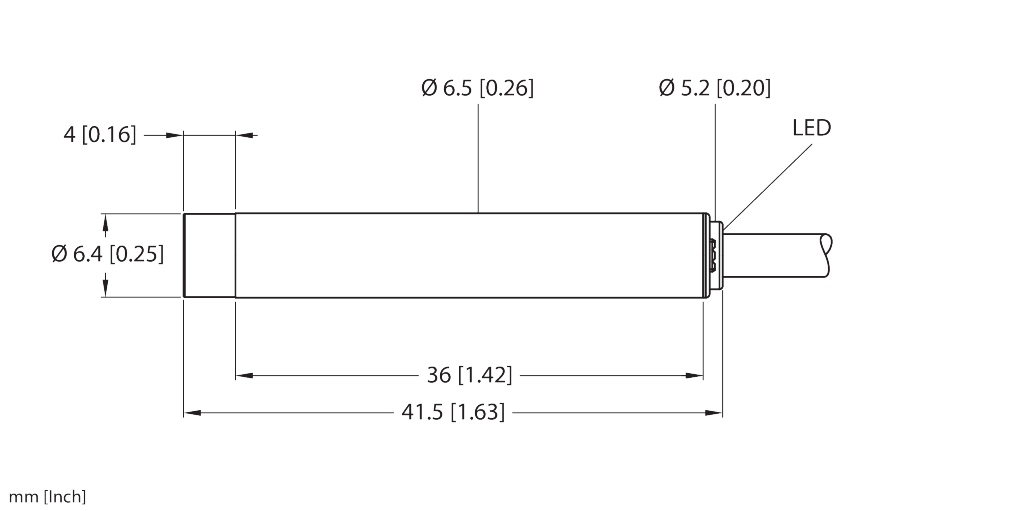

Dimensions
6,5 mm x 41,5 mm
Quality active face
PBT
Switching frequency (kHz)
3
Key Features
Electrical connection
Cable
Mounting conditions
Non-flush
Output function
PNP
Rated switching distance (mm)
3
