Inductive Sensor
BI2-M12-AP6X/S120
Order ID no. 4614652
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Cable length (m)
2
Design
Threaded barrel
Electrical connection
Cable
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
120
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
2
Construction size
M12 x 1
Base unit
PCE
EAN/UPC code
4047101264593
Gross weight
100
Height
30
Length
160
Net weight
100
Dimension unit
MMT
Weight unit
GRM
Volume
768
Volume unit
CMQ
Width
160

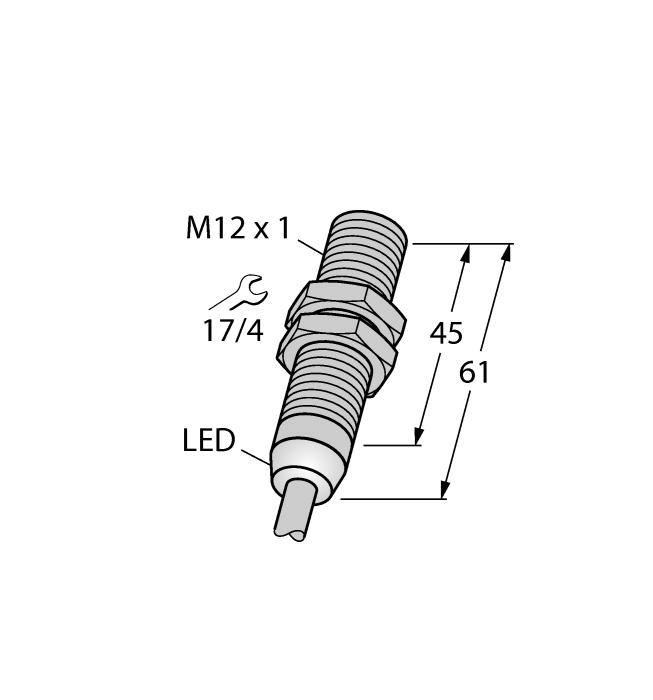

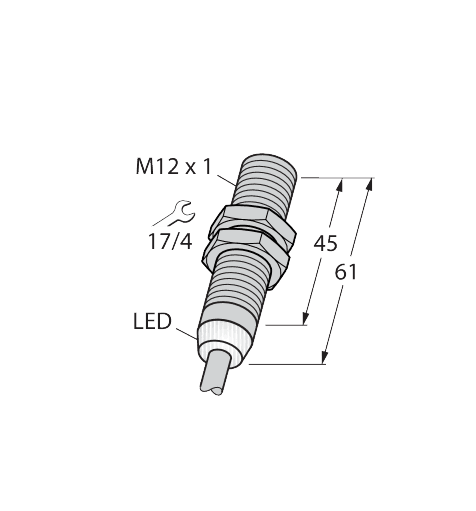

Dimensions
12 mm x 61 mm
Housing surface
Chrome-plated
Quality active face
PBT
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
2
In Stock
Price Group
E1
List Price
€146.08
Item Total
€146.08
Quantity
−
+
add_shopping_cart
Add to Cart
