BI5-EM18WD-AP6X/S929 | TURCK - Your Global Automation Partner
Inductive Sensor
BI5-EM18WD-AP6X/S929
Order ID no. 4614902
home
Home
Loading...
Technical Data
Protection class
IP68
Switching element function
NO contact
Output function
PNP
Cable length (m)
2
Design
Threaded barrel
Electrical connection
Cable
Housing material
Stainless steel
Housing quality
1.4571 (AISI 316Ti)
Ambient temperature min. (°C)
-60
Ambient temperature max. (°C)
60
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
5
Construction size
M18 x 1
Base unit
PCE
Special features
Wash down, Pressure resistant
EAN/UPC code
4047101170665
Gross weight
119
Height
20
Length
150
Net weight
119
Dimension unit
MMT
Weight unit
GRM
Volume
420
Volume unit
CMQ
Width
140

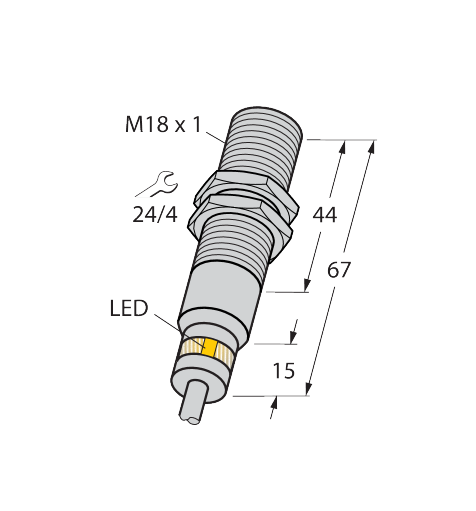

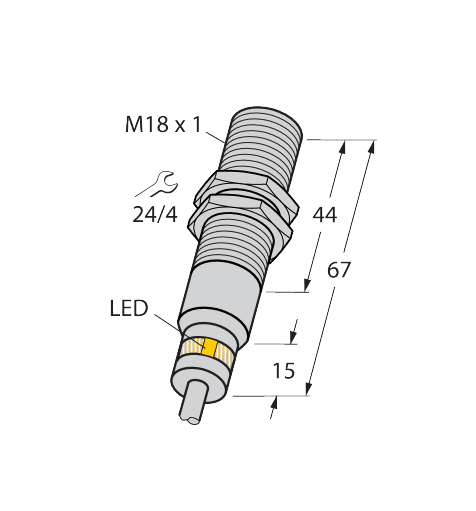

Dimensions
18 mm x 67 mm
Quality active face
PTFE
Switching frequency (kHz)
1
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
5
In Stock
Price Group
E1
List Price
€200.64
Item Total
€200.64
