NI15-EM30-AP6/S907 | TURCK - Your Global Automation Partner
Inductive Sensor
NI15-EM30-AP6/S907
Order ID no. 4617412
home
Home
Loading...
Technical Data
Protection class
IP68
Switching element function
NO contact
Output function
PNP
Cable length (m)
2
Design
Threaded barrel
Electrical connection
Cable
Housing material
Stainless steel
Housing quality
1.4571 (AISI 316Ti)
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
160
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
15
Construction size
M30 x 1.5
Base unit
PCE
EAN/UPC code
4047101170900
Gross weight
332
Height
30
Length
140
Net weight
332
Dimension unit
MMT
Weight unit
GRM
Volume
588
Volume unit
CMQ
Width
140

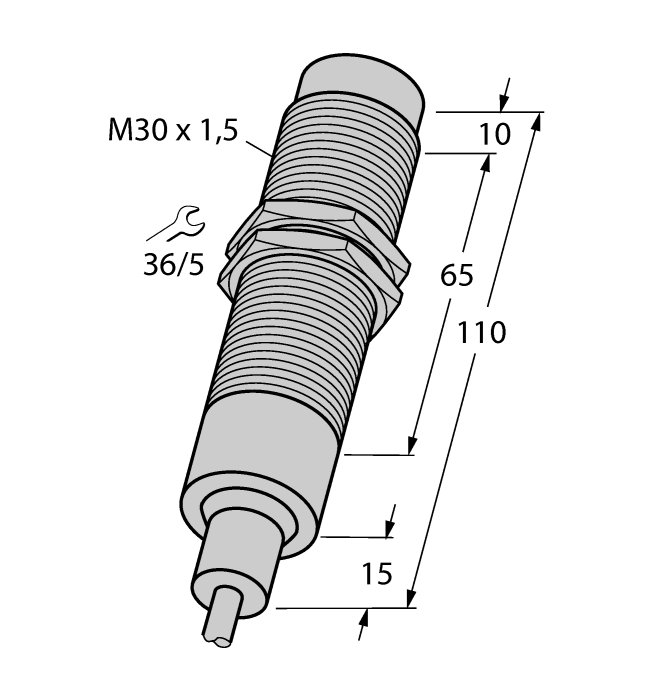

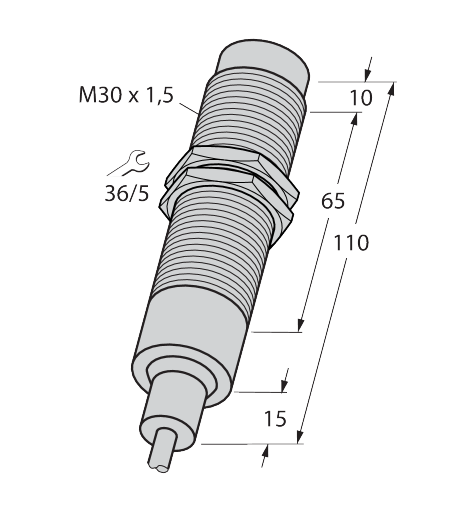

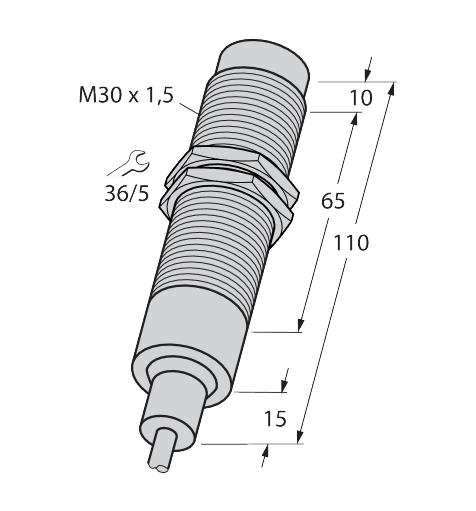

Dimensions
30 mm x 110 mm
Quality active face
PEEK
Switching frequency (kHz)
0.2
Key Features
Electrical connection
Cable
Mounting conditions
Non-flush
Output function
PNP
Rated switching distance (mm)
15
In Stock
Price Group
E1
List Price
€348.26
