BI2-EG08K-AP6X | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

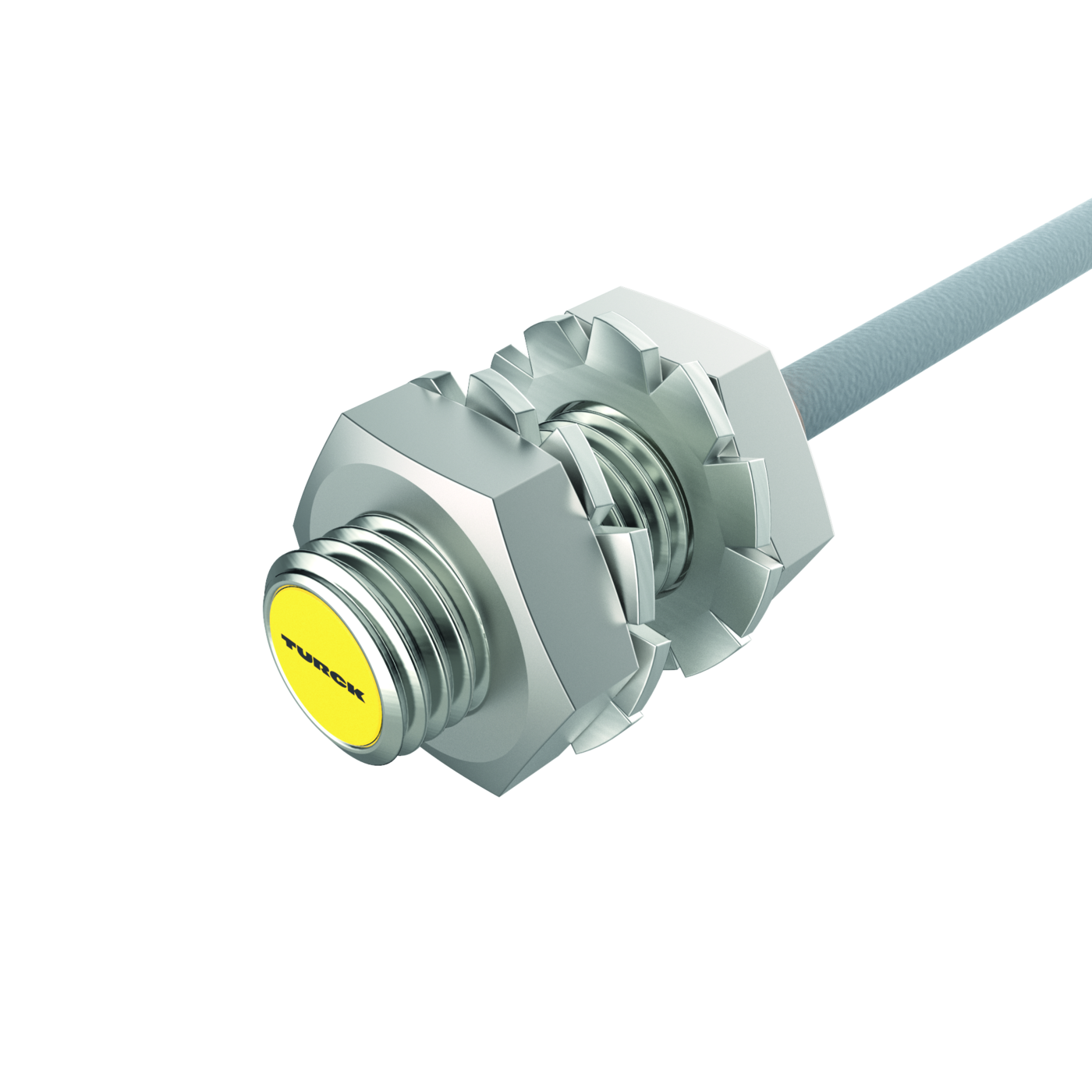

Inductive Sensor
BI2-EG08K-AP6X
Order ID no. 4669400
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Cable length (m)
2
Cable color
Gray
Design
Threaded barrel
Electrical connection
Cable
Housing material
Stainless steel
Housing quality
1.4305 (AISI 303)
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
2
Construction size
M8 x 1
Base unit
PCE
Special features
Sn +
EAN/UPC code
4047101158960
Gross weight
44
Height
20
Length
130
Net weight
44
Dimension unit
MMT
Weight unit
GRM
Volume
208
Volume unit
CMQ
Width
80

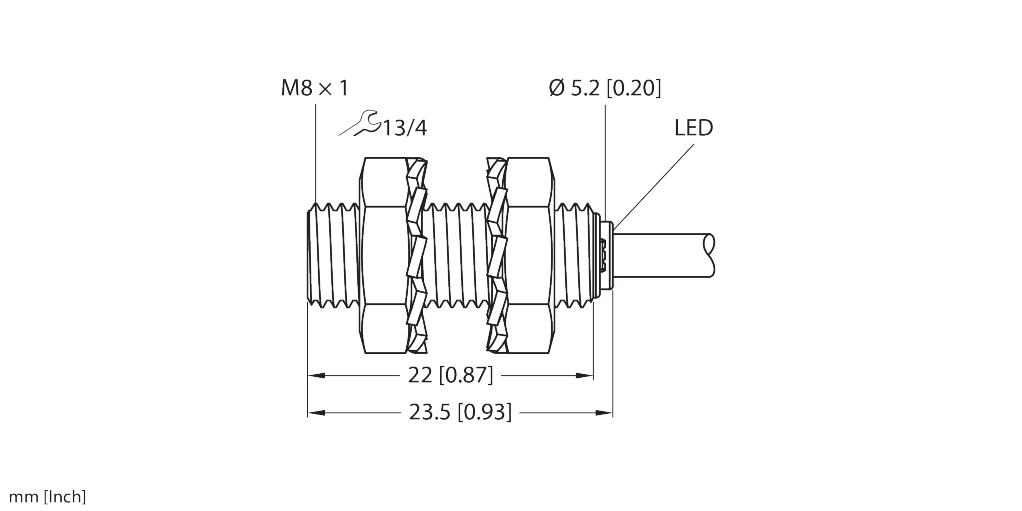

Dimensions
8 mm x 23,5 mm
Quality active face
PA6.6
Switching frequency (kHz)
3
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
2
In Stock
Price Group
E1
List Price
€67.10
