BI4-G12K-AN6X | TURCK - Your Global Automation Partner
Inductive Sensor
BI4-G12K-AN6X
Order ID no. 4670251
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
NPN
Cable length (m)
2
Design
Threaded barrel
Electrical connection
Cable
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
4

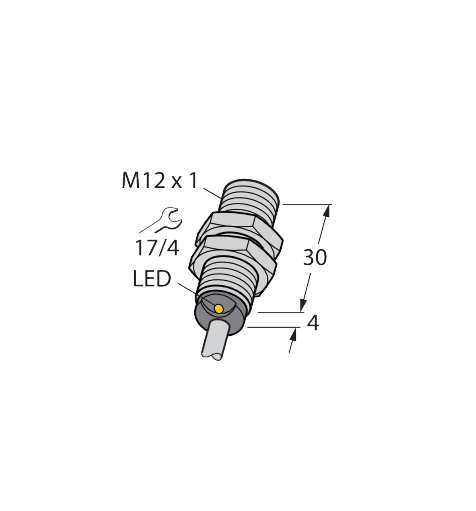

Construction size
M12 x 1
Base unit
PCE
Special features
Sn +
EAN/UPC code
4047101103014
Gross weight
106
Height
20
Length
100
Net weight
106
Dimension unit
MMT
Weight unit
GRM
Volume
200
Volume unit
CMQ
Width
100
Dimensions
12 mm x 34 mm
Housing surface
Chrome-plated
Quality active face
PA12-GF30
Switching frequency (kHz)
2
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
4
In Stock
Price Group
E1
List Price
€119.68
