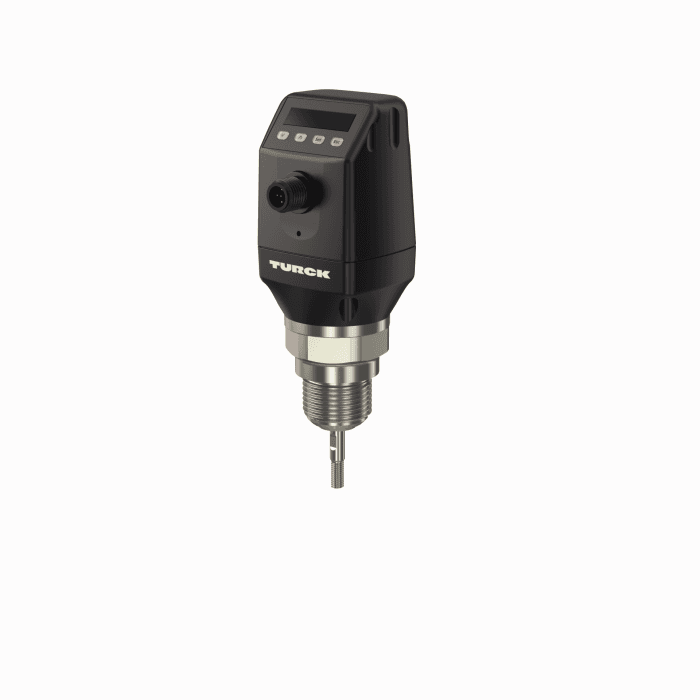

Level Sensor
LS-551-0000-LIU22PN8X-H1151
Order ID no. 100001844| In Stock | |
| Price Group | D2 |
| List Price | €486.20 |
Item Total€486.20
Quantity
- Protection class
- IP67
- Ambient temperature min. (°C)
- -20
- Ambient temperature max. (°C)
- 60
- Design
- With display
- Electrical connection
- Connector
- Operating voltage
- DC
- Switching element function
- NO/NC
- Output function
- PNP/NPN, analog output
- Housing material
- Plastic
- Communication protocol
- IO-Link
- Connector type
- M12 × 1
- Housing quality
- PBT
- Approvals
- UL
- Detection type
- medium contact
- Medium
- liquids
- Measuring principle
- Guided microwave
- Process connection
- G 3/4'' male thread
- Media temperature min. (°C)
- -20
- Media temperature max. (°C)
- 100
Key Features
- Communication protocol
- IO-Link
- Process connection
- G 3/4'' male thread
- Output function
- PNP/NPN, analog output
