LI500P0-Q25LM0-IOLX3-H1141 | TURCK - Your Global Automation Partner

LI500P0-Q25LM0-IOLX3-H1141

LI500P0-Q25LM0-IOLX3-H1141

Thumbnail for LI500P0-Q25LM0-IOLX3-H1141

Thumbnail for LI500P0-Q25LM0-IOLX3-H1141

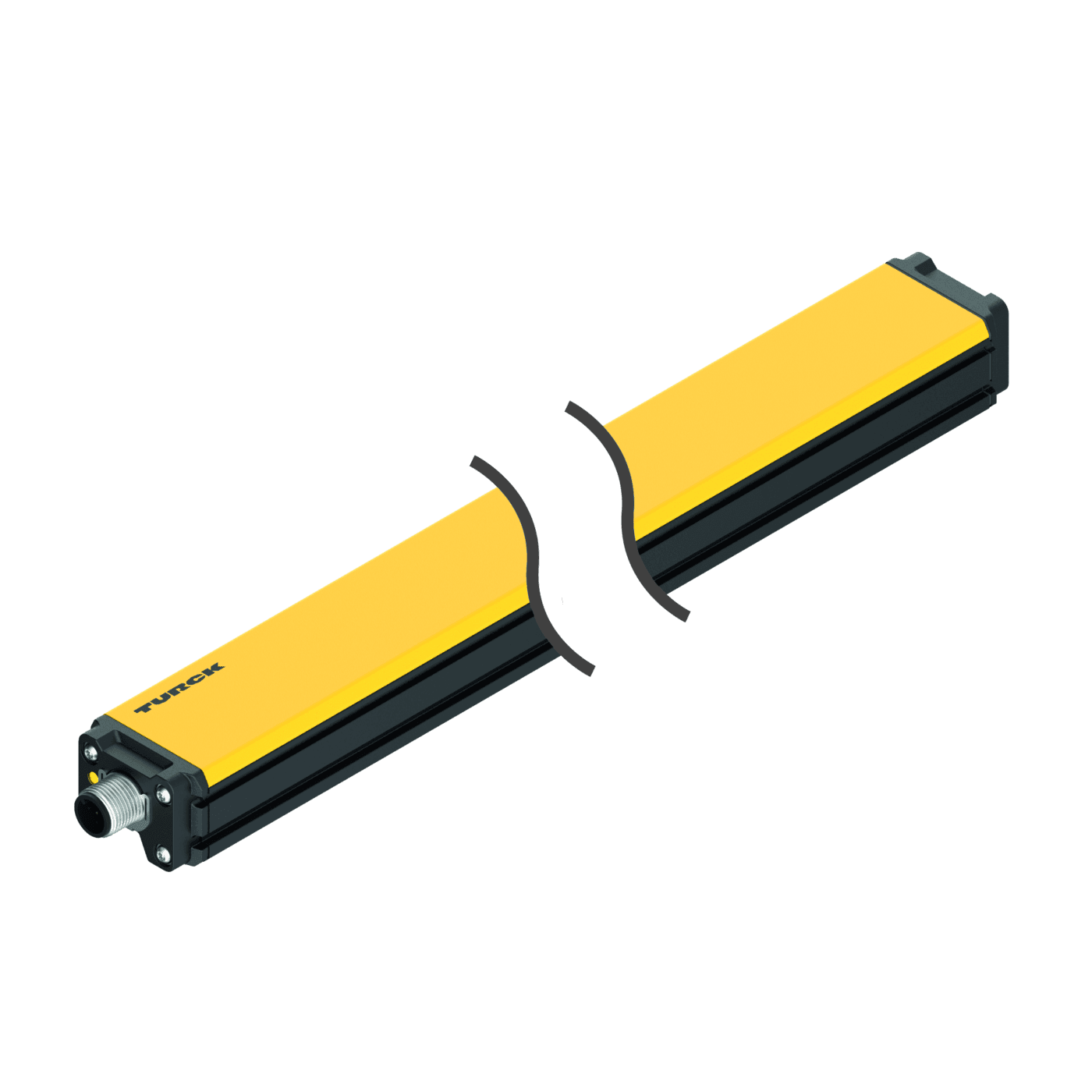

Inductive Linear Position Sensor

LI500P0-Q25LM0-IOLX3-H1141

Order ID no. 100012828

homeHome
Loading...

Protection class: IP67
Design: Profile
Communication protocol: IO-Link
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Aluminum/plastic
Housing quality: PA6-GF30
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Measuring principle: Inductive
Operating voltage: DC
Measuring range (mm): 500
Measuring range: 500…0.0 mm
Base unit: PCE
EAN/UPC code: 4047101514681
Gross weight: 838
Height: 80
Length: 720
Net weight: 838
Dimension unit: MMT
Weight unit: GRM
Volume: 4.608
Volume unit: DMQ
Width: 80

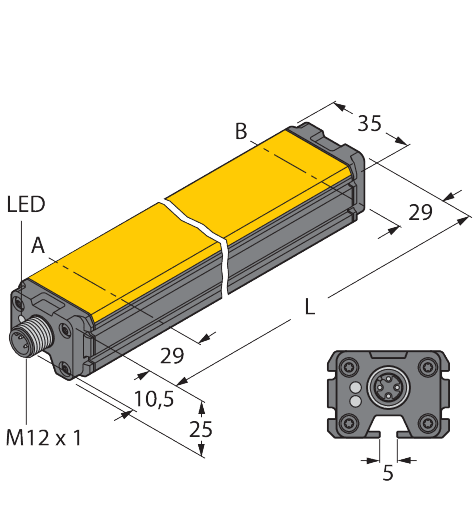

Dimensions: 558 mm x 35 mm x 25 mm
Housing surface: Anodized
Quality active face: PA6-GF30

Key Features

Communication protocol: IO-Link
Electrical connection: Connector
Measuring range (mm): 500

In Stock
Price Group	F1
List Price	€311.10
