WIM125-Q25L-LI-EXI-H1141 | TURCK - Your Global Automation Partner

WIM125-Q25L-LI-EXI-H1141

WIM125-Q25L-LI-EXI-H1141

Thumbnail for WIM125-Q25L-LI-EXI-H1141

Thumbnail for WIM125-Q25L-LI-EXI-H1141

Magnetically Actuated Linear Position Sensor

WIM125-Q25L-LI-EXI-H1141

Order ID no. 1536643

homeHome
Loading...

Protection class: IP67
Output function: Analog output
Design: Profile
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Aluminum/plastic
Housing quality: PA6-GF30
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 65
Measuring principle: Magnetic
Operating voltage: DC
Measuring range (mm): 125
Construction size: 166 x 35 x 25 mm
Measuring range: 125…0.0 mm
Base unit: PCE
EAN/UPC code: 4047101259513
Gross weight: 317
Height: 50
Length: 450
Net weight: 317
Dimension unit: MMT
Weight unit: GRM
Volume: 1125
Volume unit: CMQ
Width: 50

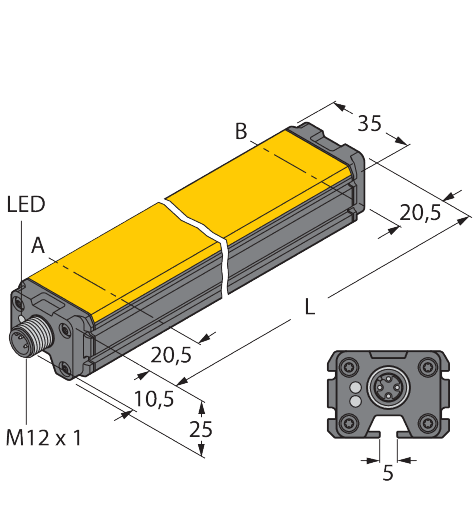

Dimensions: 166 mm x 35 mm x 25 mm
Quality active face: PA6-GF30
Resolution: 0.122 mm

Key Features

Electrical connection: Connector
Measuring range (mm): 125
Output function: Analog output

In Stock
Price Group	F1
List Price	€392.59

Item Total€392.59
