Magnetic Field Sensor

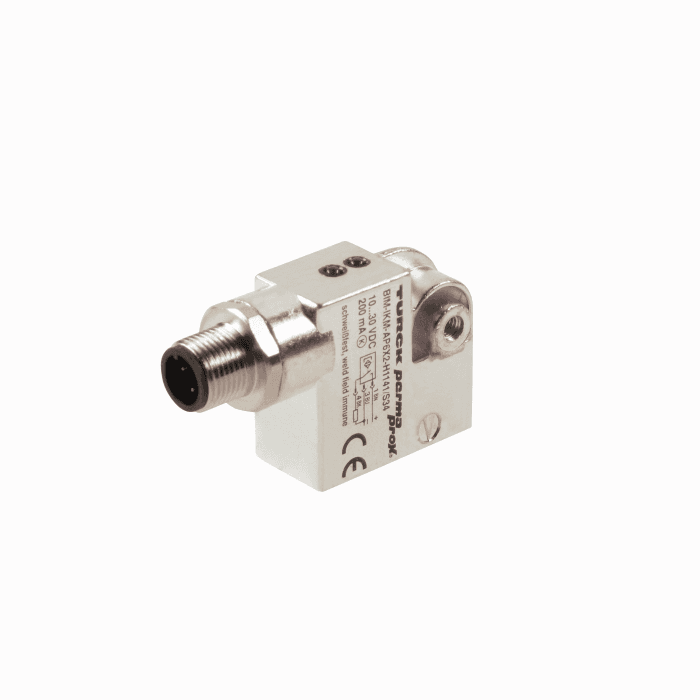

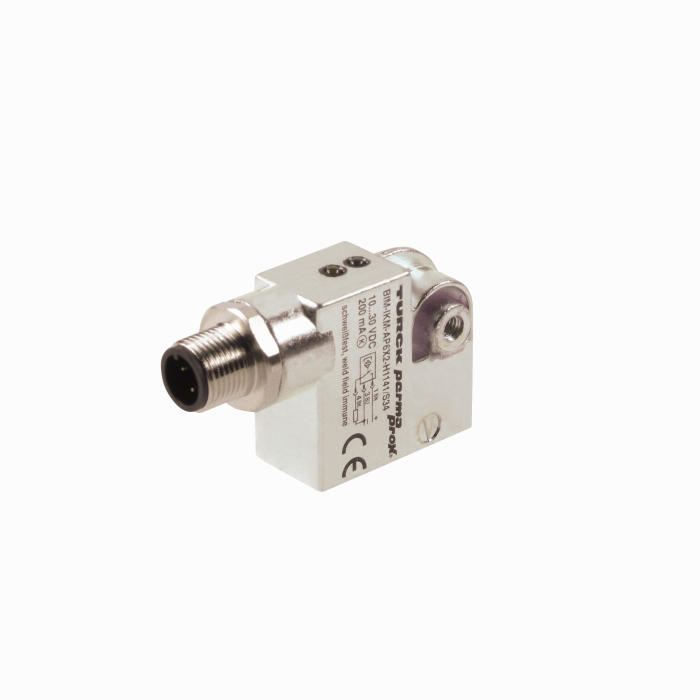

BIM-IKM-AP6X2-H1141/S34

Order ID no. 46272

Protection class: IP67
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Design: Rectangular
Electrical connection: Connector
Operating voltage: DC
Switching element function: NO contact
Output function: PNP
Housing material: Metal
Connector type: M12 × 1
Housing quality: GD-Zn

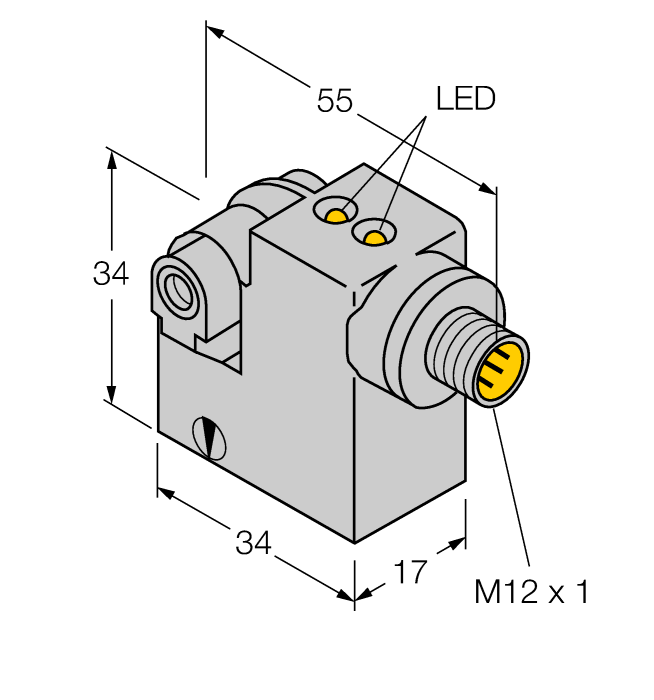

Construction size: 34 x 17 x 34 mm
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove

Electrical connection: Connector
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove
Output function: PNP
