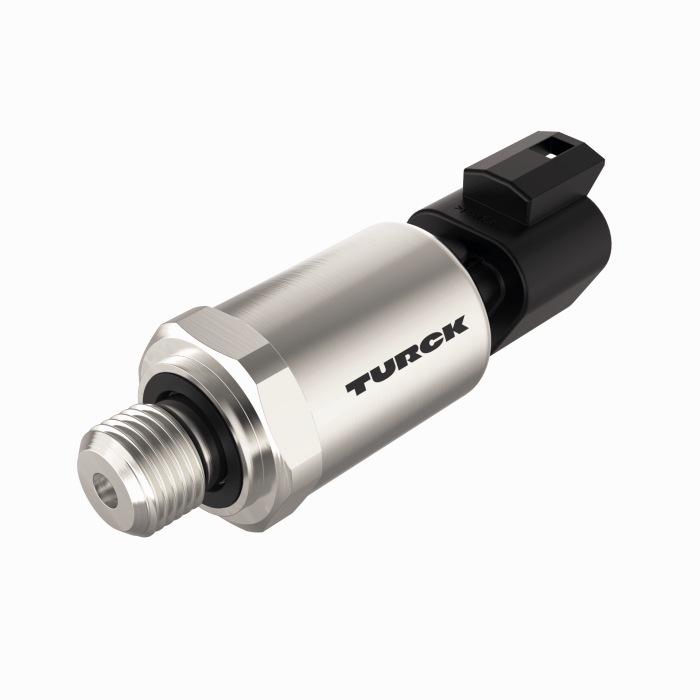

Pressure Transmitter

PT600R-2104-I2-DT043P

Order ID no. 100003583

Protection class: IP69K
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 100
Design: Without display
Electrical connection: Connector
Operating voltage: DC
Output function: Analog output current
Housing material: Stainless-steel/Plastic
Connector type: Deutsch DT04-3P
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Approvals: cULus
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Media temperature min. (°C): -40
Media temperature max. (°C): 125
Pressure type: Relative pressure
Electrical output: Current output (2-wire)
Material pressure transducer: Stainless steel 1.4404 (AISI 316L)
Pressure range: 0…600 bar

Electrical output: Current output (2-wire)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: 0…600 bar
