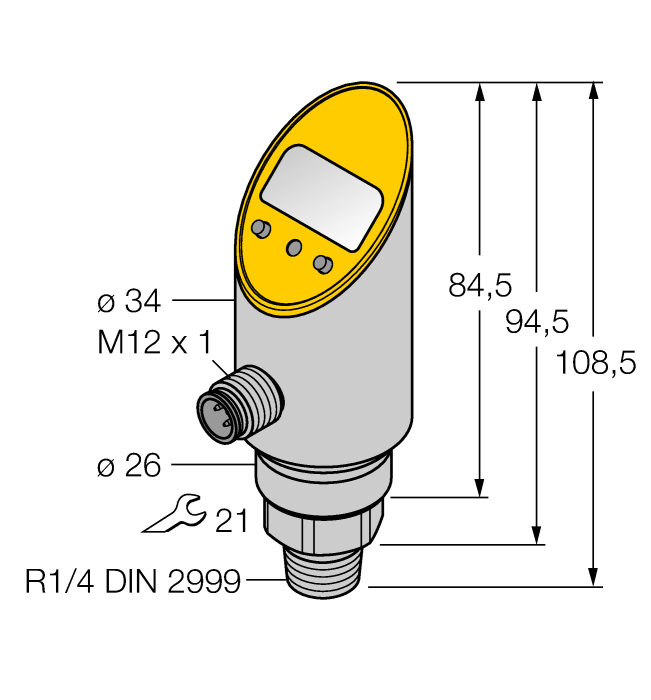

Pressure sensor
PS003V-310-LI2UPN8X-H1141
Order ID no. 6833507| In Stock | |
| Price Group | G1 |
| List Price | €485.55 |
Item Total€485.55
Quantity
- Protection class
- IP67, IP69K
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 80
- Design
- With display
- Electrical connection
- Connector
- Operating voltage
- DC
- Switching element function
- NO/NC
- Output function
- PNP/NPN
- Housing material
- Stainless-steel/Plastic
- Communication protocol
- IO-Link
- Connector type
- M12 × 1
- Housing quality
- 1.4305 (AISI 303)
- Approvals
- cULus
- Process connection
- R 1/4″ male thread DIN 2999
- Media temperature min. (°C)
- -40
- Media temperature max. (°C)
- 85
- Pressure type
- Relative pressure
- Electrical output
- Current output (3-wire), 2 × switching output
- Material pressure transducer
- Ceramic Al₂O₃
- Pressure range
- -1…2.5 bar
Key Features
- Communication protocol
- IO-Link
- Electrical output
- Current output (3-wire), 2 × switching output
- Process connection
- R 1/4″ male thread DIN 2999
- Pressure range
- -1…2.5 bar
