PS003V-311-2UPN8X-H1141 | TURCK - Your Global Automation Partner

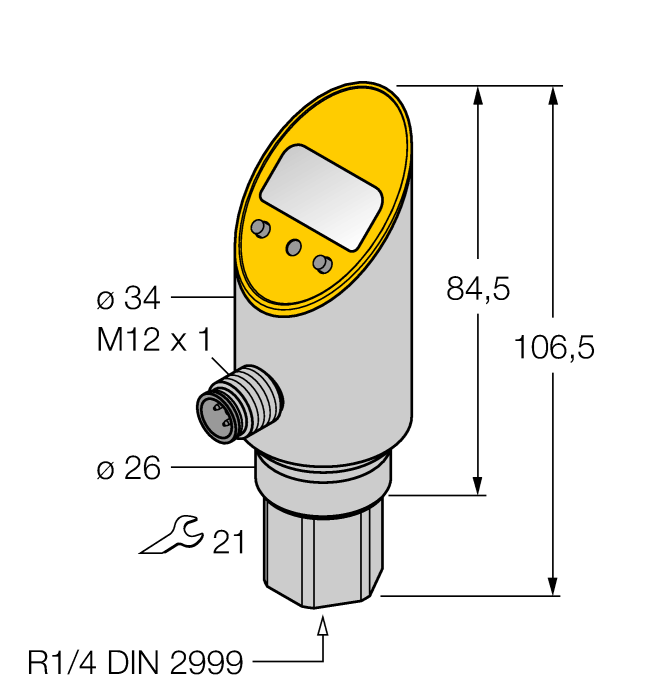

Pressure sensor
PS003V-311-2UPN8X-H1141
Order ID no. 6833555
home
Home
Loading...
Technical Data
Protection class
IP67, IP69K
Switching element function
NO/NC
Output function
PNP/NPN
Approvals
cULus
Design
With display
Process connection
R 1/4″ female thread DIN 2999
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless-steel/Plastic
Housing quality
1.4305 (AISI 303)
Media temperature min.
-40
Media temperature max.
85
Ambient temperature min.
-40
Ambient temperature max.
80
Operating voltage
DC
Electrical output
2 × switching output
Pressure type
Relative pressure
Material pressure transducer
Ceramic Al₂O₃
Pressure range
-1…2.5 bar
Key Features
Communication protocol
IO-Link
Electrical output
2 × switching output
Process connection
R 1/4″ female thread DIN 2999
Pressure range
-1…2.5 bar
home
Turck-Shop
Sensors
Pressure Sensors
PS003V-311-2UPN8X-H1141
In Stock
List Price
€485.55
Item Total
€485.55
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
