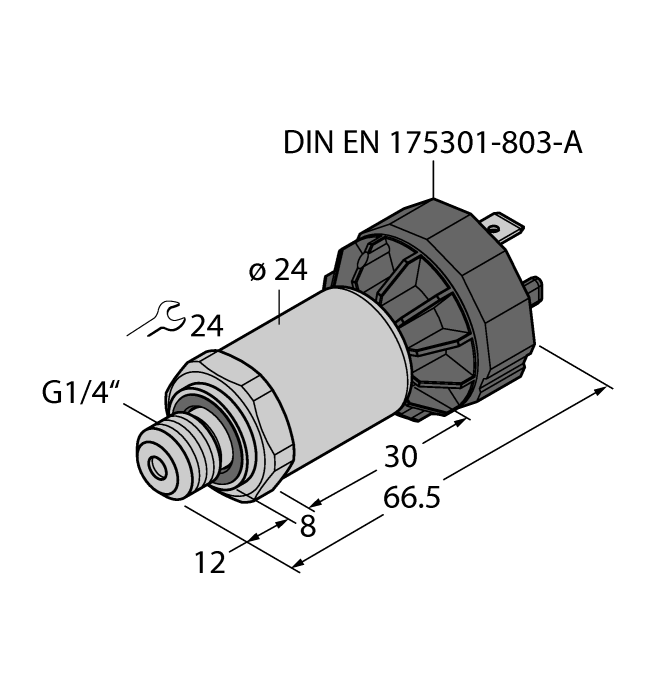

Pressure Transmitter

PT25R-2004-I2-DA91/X

Order ID no. 6836453

Protection class: IP65
Output function: Analog output current
Approvals: cULus
Design: Without display
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Electrical connection: Connector
Connector type: DIN EN 175301-803 Form A
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min.: -40
Media temperature max.: 135
Ambient temperature min.: -30
Ambient temperature max.: 85
Operating voltage: DC
Electrical output: Current output (2-wire)
Pressure type: Relative pressure
Material pressure transducer: Stainless steel 1.4016 (AISI 430)
Pressure range: 0…25 bar

Electrical output: Current output (2-wire)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: 0…25 bar

In Stock
List Price	€138.76
