Radar Sensor

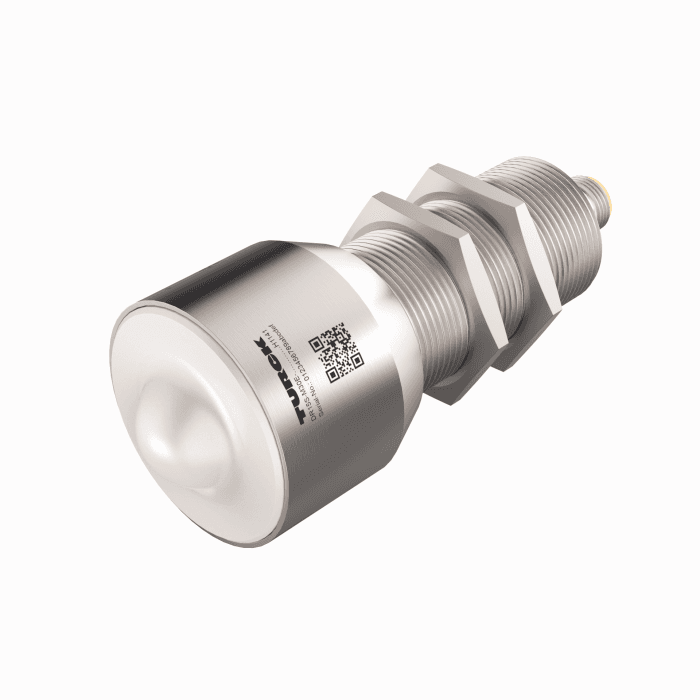

DR15S-M30E-2UPN8X2-H1141
Order ID no. 100030149
home
Home
Loading...
Technical Data
Protection class
IP67, IP69K
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
65
Design
Threaded barrel
Electrical connection
Connector
Operating voltage
DC
Switching element function
NO/NC programmable
Output function
PNP/NPN
Housing material
Stainless steel
Function
Radar scanner
Communication protocol
IO-Link
Connector type
M12 × 1
Housing quality
1.4401 (AISI 316), PTFE
Construction size
M30 x 1.5
Detection type
contactless
Measuring principle
Radar
Max. range (mm)
15000
Beam angle
15°
Key Features
Electrical connection
Connector
Output function
PNP/NPN
Beam angle
15°
Max. range (mm)
15000
In Stock
Price Group
G1
List Price
€661.56
