Q90R2-12040-6KDQ | TURCK - Your Global Automation Partner

Q90R2-12040-6KDQ

Q90R2-12040-6KDQ

Thumbnail for Q90R2-12040-6KDQ

Thumbnail for Q90R2-12040-6KDQ

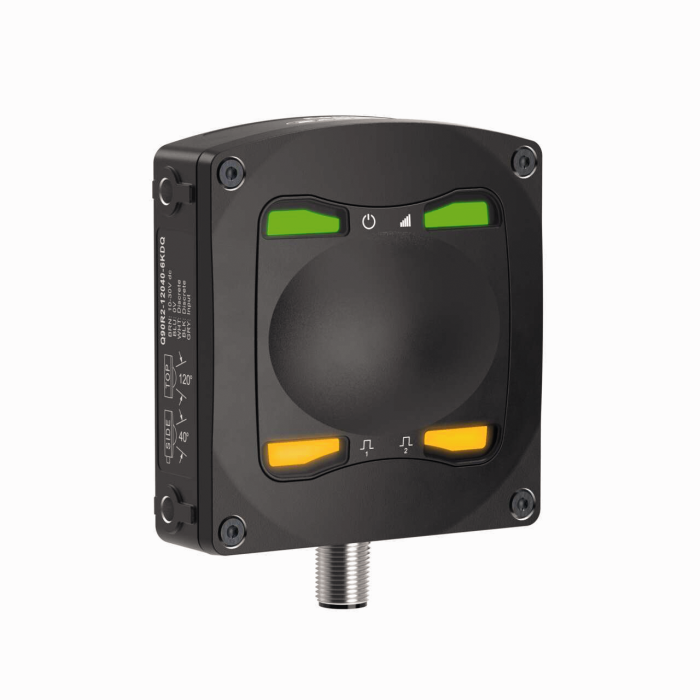

Radar Sensor

Q90R2-12040-6KDQ

Order ID no. 3816434

homeHome
Loading...

Protection class: IP67
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 65
Design: Rectangular
Electrical connection: Connector
Operating voltage: DC
Switching element function: NO/NC programmable
Output function: PNP/NPN
Housing material: Aluminium
Antenna connection: Internal, planar
Communication protocol: IO-Link
Connector type: M12 × 1
Housing quality: AL
Approvals: CE, UKCA, UL Listed

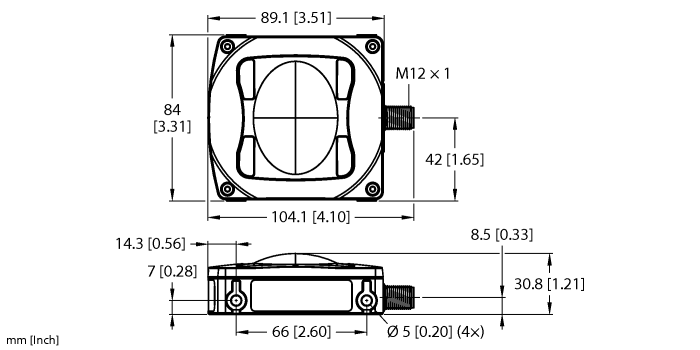

Construction size: 89 x 17 x 89 mm
Max. range (mm): 20000

Key Features

Electrical connection: Connector
Output function: PNP/NPN
Max. range (mm): 20000

In Stock
Price Group	F3
List Price	€1,046.06

homeTurck-Shop
Sensors
Radar Sensors
Q90R2-12040-6KDQ

Item Total€1,046.06
