Temperature Detection

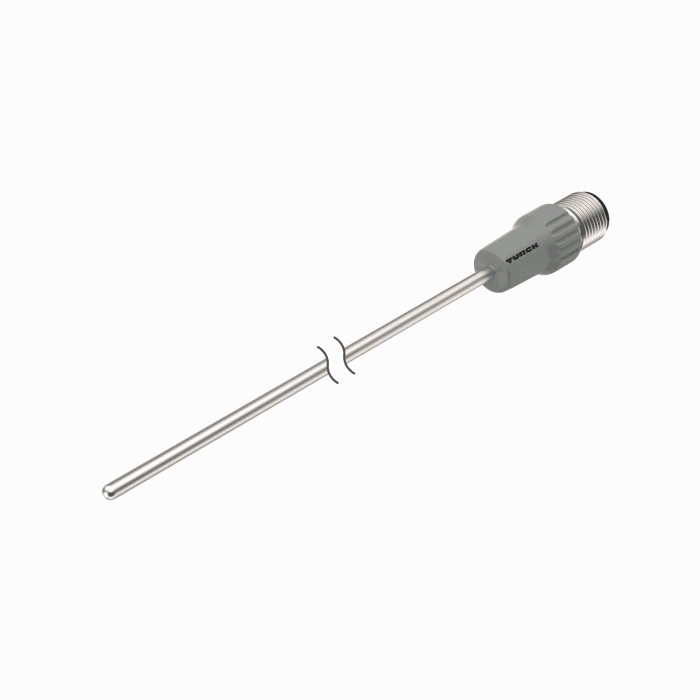

TP-203A-CF-H1141-L100
Order ID no. 9910402| In Stock | |
| Price Group | D2 |
| List Price | €57.53 |
Item Total€57.53
Quantity
- Protection class
- IP67
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 120
- Design
- Temperature probe
- Mounting conditions
- Immersion sensor
- Electrical connection
- Connector
- Housing material
- Stainless steel
- Connector type
- M12 × 1
- Housing quality
- 1.4404 (AISI 316L)
- Approvals
- cULus
- Detection type
- medium contact
- Process connection
- For compression fittings, thermowell or direct mounting
- Electrical output
- Resistance
- Immersion depth L (mm)
- 100
- Measuring range
- -50…500 °C
Key Features
- Electrical output
- Resistance
- Process connection
- For compression fittings, thermowell or direct mounting
- Measuring range
- -50…500 °C
